Magnetic V-Block Set - 6891 Series (Insize)

Previous Product | Next Product

Product Description

£194.00 (ex VAT)

Usually ships in: 10-14 days

Delivery price: £8.99

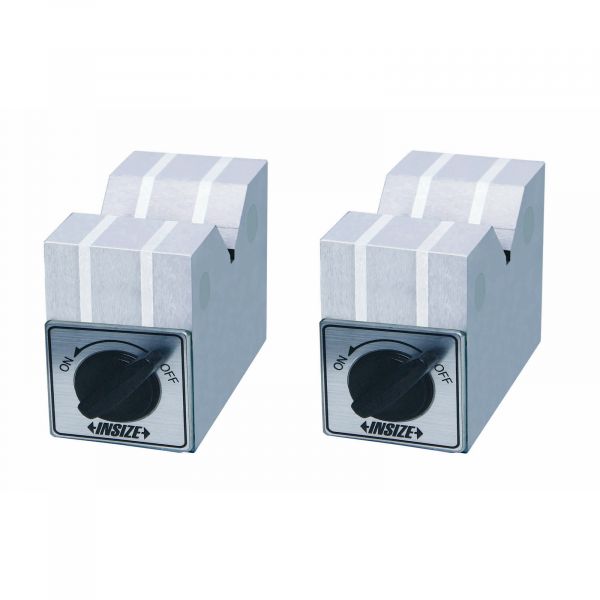

The Insize 6891 Magnetic V-Block Set can clamp larger cylindrical workpieces for high precision inspection and machining, can be mounted vertical or horizontal. With larger V-grooves you have a clamping range from 6-125mm.

Parallelism of V-groove to top, bottom, left and right sides 0.01mm.
Squareness of V-groove to back side 0.01mm.
Height difference of a matched pair 0.01mm.
Two V-blockes per set.

Size (LxWxH)	70x40x50mm
Brand	Insize
Product Range	V Blocks
Product Group	MTIN
Individual or Set	Set
Height Difference of Pair	0.01mm
Parallelism	0.01mm
Range of Shafts	6-46mm
Magnetic Force	15kgf
Type	Magnetic
Cutwel Sku	6891-1

Size (LxWxH)	150x50x100mm
Brand	Insize
Product Range	V Blocks
Product Group	MTIN
Individual or Set	Set
Height Difference of Pair	0.01mm
Parallelism	0.01mm
Range of Shafts	6-125mm
Magnetic Force	23kgf
Type	Magnetic
Cutwel Sku	6891-3

Size (LxWxH)	75x56x75mm
Brand	Insize
Product Range	V Blocks
Product Group	MTIN
Individual or Set	Individual
Range of Shafts	5-40mm
Magnetic Force	85kgf
Type	Magnetic
Cutwel Sku	6889-11

Size (LxWxH)	100x70x95mm
Brand	Insize
Product Range	V Blocks
Product Group	MTIN
Individual or Set	Individual
Range of Shafts	5-65mm
Magnetic Force	150kgf
Type	Magnetic
Cutwel Sku	6889-22
