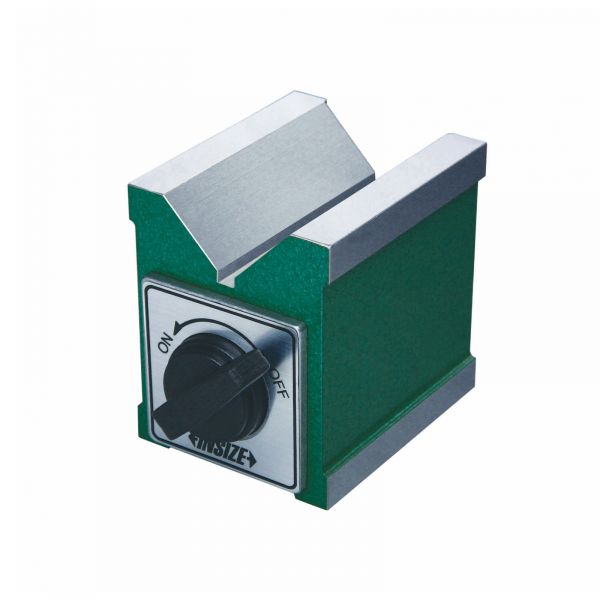

Magnetic Individual V-Block - 6801 Series (Insize)

Previous Product | Next Product

Product Description

£155.00 (ex VAT)

Usually ships in: 10-14 days

Delivery price: £8.99

The Insize 6801 Magnetic V-Block can clamp cylindrical workpieces for precision inspection and machining, can be mounted vertical or horizontal. With V-grooves on both sides you have a clamping range upto 67mm.

Parallelism of V-groove to top, bottom, left and right sides 0.01mm.
Squareness of V-groove to back side 0.01mm.
V groove on the top for large shafts.
V groove on the bottom for small shafts.
Supplied in single pieces.
Not hardened.
Magnetic force upto 96kgf.
Not suitable for cast iron surface plates.

Size (LxWxH)	100x70x95mm
Brand	Insize
Product Range	V Blocks
Product Group	MTIN
Individual or Set	Individual
Range of Shafts	6-67mm
Magnetic Force	50kgf
Squareness	0.01mm
Type	Magnetic
Cutwel Sku	6801-1202

Size (LxWxH)	70x60x73mm
Brand	Insize
Product Range	V Blocks
Product Group	MTIN
Individual or Set	Individual
Range of Shafts	6-44mm
Magnetic Force	56kgf
Squareness	0.01mm
Type	Magnetic
Cutwel Sku	6890-702
