Electronic amplifier gauges accept transducers otherwise known as probes that can be fitted into a variety of gauges, the columns give clear quick easy to read bar display with 6 different ranges down to 0.1 microns.
Electronic Gauge Amplifier Displays
Gauging Transducer Probe Mercer 490 Type Axial
£255.00
Gauging Transducer ProbeåÊMercer 490 Type Spring Push Body Dia 8mm Total length 104.8mm Total stroke 4.6mm Measuring stroke +/- 1.0mm Adjustable pre travel 3mm carbide ball tip M2.5 thread Cable PUR shielded, 2m long axial exit Spring rate 0.63N Repeatability 0.0001mm Halfbridge coil form
Gauging Transducer Probe Mercer 490 Type Radial
£255.00
Gauging Transducer Probe Mercer 490 Type Spring Push Body Dia 8mm Total length 82.1mm Total stroke 4.6mm Measuring stroke +/- 1.0mm Adjustable pre travel 3mm carbide ball tip M2.5 thread Cable PUR shielded, 2m long Radial 90 deg exit Spring rate 0.63N Repeatability 0.0001mm Halfbridge coil form Radial 90 deg cable exit
Gauging Transducer Probe Tesa GT21 Type
£215.00
Gauging Transducer Probe Tesa GT21 Type Spring Push Body Dia 8mm Total length 104.8mm Total stroke 4.6mm Measuring stroke +/- 1.0mm Adjustable pre travel 3mm carbide ball tip M2.5 thread Cable PUR shielded, 2m long axial exit Spring rate 0.63N Repeatability 0.0001mm Halfbridge coil form
Gauging Transducer Probe Tesa GT22 Type radial
£215.00
Body Dia 8mm Total length 104.8mm Total stroke 4.6mm Measuring stroke +/- 1.0mm Adjustable pre travel 3mm carbide ball tip M2.5 thread Cable PUR shielded, 2m long axial exit Spring rate 0.63N Repeatability 0.0001mm Half bridge coil form
Mahr C 1200 M Millimar Compact Amplifier with RS-232C, USB, Digimatic & Wireless Data Output
Electronic Column Gauges
Mahr C 1200 M Millimar Compact Amplifier with RS-232C, USB, Digimatic & Wireless Data Output
£1,066.00
Compact amplifier Millimar C 1200 M Range of analog display mm: Range of digital display mm: ± 5000 Compatibility: Mahr Probe inputs: 1 Data interface: Opto RS-232C, USB, Digimatic, wireless Energy supply: Power source, 230 V/115 V; 50/60 Hz, battery operation Package contains: power source, instruction manual High-resolution, high-contrast col...
Mahr Millimar 1301
£413.10
Highly robust as the measuring system is recessed from the guide and mounting shaft Outstanding clamping properties Measuring pin mounted in rotary stroke bearing Measuring pin can be lifted using wire lifter Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and o...
Mahr Millimar C 1202 Metric/Inch Version Compact Amplifier
£916.00
Versatility for a wide range of measuring tasks Interchangeable N 1700 modules as measuring channels for inductive andincremental probes or for pneumatic measuring equipment. Perfect display thanks to high resolution and high contrast color screen Fully adjustable display for ideal viewing angle Variable display of measuring values, either as a...
Mahr Millimar P2004 M Inductive Probe ± 2 mm (Mahr Compatible)
£301.00
Inductive probe Millimar P2004 M Compatibility: Mahr VLDT Measuring range mm: ± 2 mm Standard model Measuring force (N): 0,75 N +/- 0,15 N Package contains: instruction manual, cap for radial cable output, spanner for preliminary stroke setting Models with or without pneumatic lifter or load Measuring pin mounted in rotary stroke bearing High...
Mahr Millimar P2004 T Inductive Probe : ± 2 mm (Tesa Compatible)
£301.00
Inductive probe Millimar P2004 T Compatibility: Tesa Measuring range mm: ± 2 mm Standard model Measuring force (N): 0,75 N +/- 0,15 N Package contains: instruction manual, cap for radial cable output, spanner for preliminary stroke setting Models with or without pneumatic lifter or load Measuring pin mounted in rotary stroke bearing High line...
Mahr Module for Incremental Sensors Millimar N 1702 VPP
£377.00
Flexibly combinable RS-485 bus modules Powerful connection modules for evaluatingincremental measuring sensors or encoders Reference point evaluation Synchronous data retrieval from multiple connected measuring probes Can be used as a measuring module on the Millimar C 1202 as of firmware version 1.1.0.0 Connection of N 1700 modules via USB int...

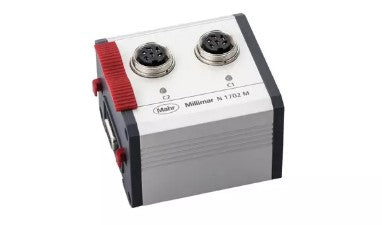

Mahr Module for Inductive Probes Millimar N 1702 M
£402.00
Versatility for a wide range of measuring tasks Interchangeable N 1700 modules as measuring channels for inductive andincremental probes or for pneumatic measuring equipment. Perfect display thanks to high resolution and high contrast color screen Fully adjustable display for ideal viewing angle Variable display of measuring values, either as a...
Mahr Module for Inductive Probes Millimar N 1702 M-HR
£856.00
Flexibly configurable RS-485 bus modules Powerful connection modules for evaluating measuring sensors (inductive) High resolution of measuring signal, 0.01 µm Synchronous data retrieval from multiple connected measuring probes Connection of N 1700 modules via USB interface to the smart, universal evaluation and configuration software Millimar C...

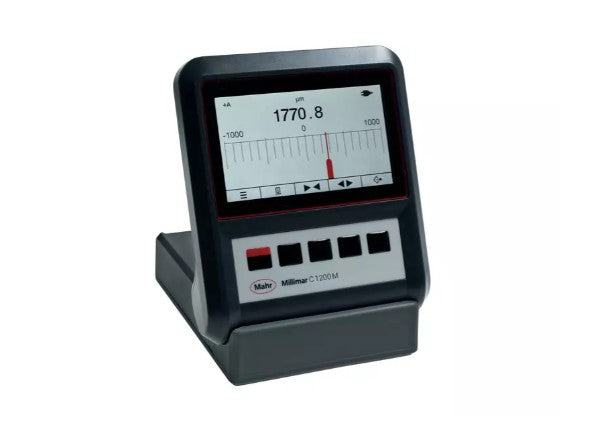

Millimar C1200 Compact Amplifier
£1,044.00
High-resolution, high-contrast color display Mains or Battery Compact, adjustable screen angle wall mount facility TFT color display, 110 mm (4.3" ), 480 x 272 pixels 8 Ranges:± 5000 / ± 2000 / ± 1000 / ± 300 / ± 100 / ± 30 / ± 10 / ± 3 8 Graduations:500 / 200 / 100 / 20 / 10 / 2 / 1 / 0,2 Single probe input Inch / metric conversion Data output ...
Tesa TRONIC TWIN-T10 portable display unit for inductive probes
£949.00
Portable display TESATRONIC TWIN-T10 for TESA inductive probe– Autonomous instrument used during assembly, on an inspection workstation of a production line, for final inspection or directly on a machine on the shop floor– Frequently used with a GT 31 lever probe for geometry measurements: form tolerances (straightness, flatness etc.) or orienta...
