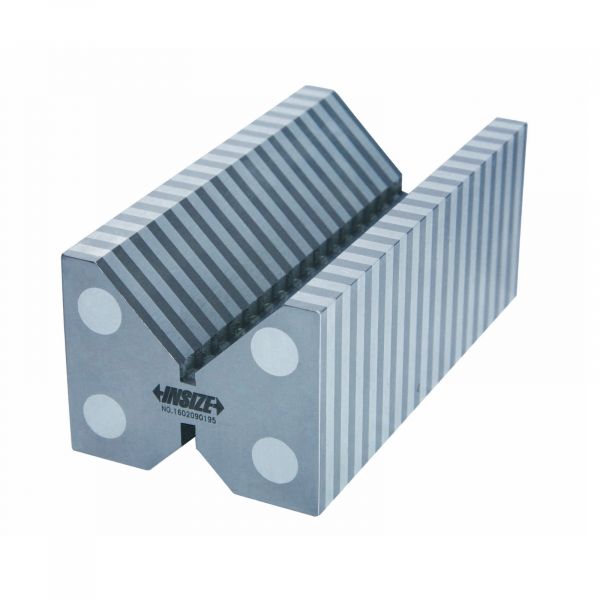

Magnetic Induction V-Block (Individual) - 6892 Series (Insize)

Previous Product | Next Product

Product Description

£80.00 (ex VAT)

Usually ships in: 10-14 days

Delivery price: £8.99

The Insize 6892 Magnetic Induction V-Block can clamp cylindrical workpieces for high precision inspection and machining on magnetic bases . With V-grooves on both sides you have a clamping range from 5-50mm.

Parallelism of both V-groove to top, bottom, left and right sides 0.01mm.
Supplied in singles.
V-groove on top for large diameters.
V-groove on bottom for small diameters.
To be used on magnetic bases.

Size (LxWxH)	110x60x48mm
Brand	Insize
Product Range	V Blocks
Product Group	MTIN
Individual or Set	Individual
Parallelism	0.01mm
Range of Shafts	6-50mm
Type	Magnetic Induction
Cutwel Sku	6892-1
