Novo-Gloss 20/60/85 Glossmeter with Haze to ASTM E430

Previous Product | Next Product

Product Description

£2,820.00 (ex VAT)

Usually ships in: 2-3 days

Delivery price: £8.99

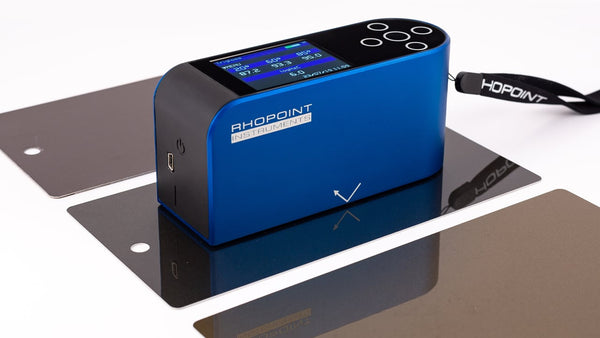

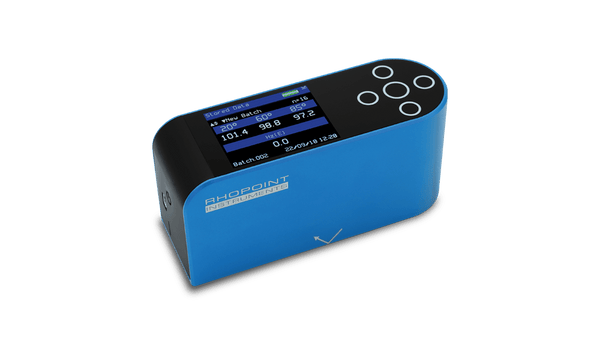

The Novo-Gloss 20/60/85° gloss meter is designed to meet the measurement criteria for most gloss measuring applications.

The high specifications, including statistical analysis, graphical analysis and software-free PC down load facility make it the ideal gloss meter for matt to mirror surface finishes.

Measured parameters

Gloss measurement for all surface finishes:

20° – High gloss
60° – Medium gloss
85° – Low gloss

Haze measurement to ASTM E430

Reflectance haze measurement with compensation mode to provide consistent readings of metallics and speciality pigments

Glossmeter features

Fast measurement, single button push measures all parameters
On-board statistics with graphical trend analysis and reporting.
Automatic calibration with tile validation
Date and time stamped results
Easy Batching – User definable batch names and batch sizes for quicker and more efficient reporting

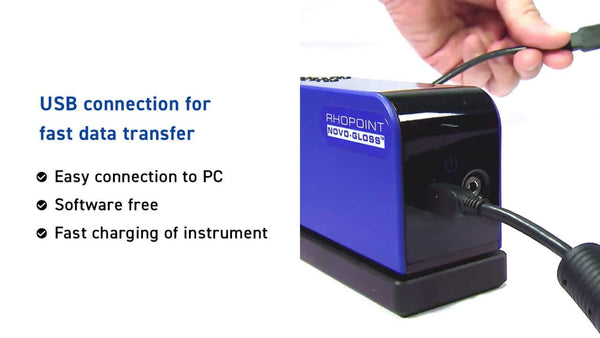

Software-free data transfer
Direct data input via Bluetooth – instantly transmit measured readings directly to programs such as Microsoft Excel
Auto-ranging, measures matt to mirror finishes
Pass / fail for easy identification of non-conformances
Compatible with all major international standards
Extended two year warranty
Lifetime lightsource guarantee
UKAS certification included

20° Gloss
Range	0 - 100 GU	100 - 2000 GU
Repeatability	0.2 GU	0.2%
Reproducibility	0.5 GU	0.5% *
Resolution	0.1 GU
Measurement Area	6mm x 6.4mm
Standards	ISO 2813 \| ASTM D523 \| ISO 7668 \| ASTM D2457 \| DIN 67530 \| JIS Z 8741

60° Gloss
Range	0 - 10 GU	10 - 100 GU	100 - 1000 GU
Repeatability	0.1 GU	0.2 GU	0.2%
Reproducibility	0.2 GU	0.5 GU	0.5% *
Resolution	0.1 GU
Measurement Area	6mm x 12mm
Standards	ISO 2813 \| ASTM D523 \| ISO 7668 \| ASTM D2457 \| DIN 67530 \| JIS Z 8741

85° Gloss
Range	0 - 100 GU	100 - 199 GU
Repeatability	0.2 GU	0.2%
Reproducibility	0.5 GU	0.5% *
Resolution	0.1 GU
Measurement Area	4.4mm x 44mm
Standards	ISO 2813 \| ASTM D523 \| ISO 7668 \| ASTM D2457 \| DIN 67530 \| JIS Z 8741

_{* A mirror gloss calibration standard is required to achieve this reproducibility}

Haze
Range	0 - 500 Log HU
Repeatability	1 Log HU
Reproducibility	10 Log HU
Resolution	0.1 Log HU
Measurement Area	6mm x 6.4mm
Standards	ASTM E430 \| ASTM D4039 \| ISO 13808

Instrument Information
Battery Type	Rechargeable lithium ion
Operation Time	17+ hours
Readings per Charge	20,000+
Memory	8MB, 2,000 readings
Operating Temperature	15°C - 40°C (60°F - 104°F)
Operating Humidty	Up to 85% (non condensing)
Commodity Code	9027 5000

Dimension & Weights
Dimensions	65mm (H) x 140mm (W) x 50mm (D)
Instrument Weight	390g
Packed Weight	1.6kg
Packed Dimensions	110mm (H) x 280mm (W) x 220mm (D)
