Novo-Curve Glossmeter

Previous Product | Next Product

Product Description

£3,275.00 (ex VAT)

Usually ships in: 2-3 days

Delivery price: £8.99

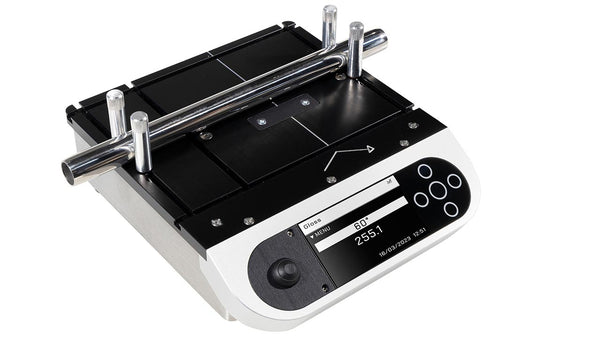

The Novo-Curve Glossmeter is a unique instrument with specially designed optics for accurately measuring curved surfaces and small areas.

It can also be used to measure flat surfaces and areas which are too small to measure with standard glossmeters.

With built in statistical analysis and the ability to download results to a PC, the instrument has all the features you will ever need for fast accurate curved surface gloss measurement.

Benefits of using the Novo-Curve Glossmeter:

Measures small, curved or irregular surfaces
Measures using 60º geometry
Simple jigging system
Bench top instrument
Hands free operation, easy sample manipulation
Full statistical analysis
UKAS certification included

Accessories:

NIST traceable calibration tile and certificate
Footswitch
220-240V/110-120V AC mains power pack
USB data cable + Novo-Soft software supplied on USB stick
Tile cleaning cloth
4 x large sample jigging posts
Instruction manual

Standard	Application	Details
ISO 2813	Paints & Varnishes	Determination of gloss value at 20°, 60° and 85°
B1277-032	Gloss	Standard test method for specular gloss

Instrument Information
Measurement angle	60°
Range	0 – 1000GU
Repeatability	0.2GU (<200GU)
Reproducibility	0.5GU (<200GU)
Memory	199 readings
Power	110 –120V AC or 220 –240V AC
Measurement aperture	4.5mm ø
Measurement spot	2mm x 2mm
Commodity code	9027 5000

Dimension & Weights
Dimensions	160mm (H) x 220mm (W) x 100mm (D)
Weight	2.5kg
Packed Weight	6kg
Packed Dimensions	180mm (H) x 400mm (W) x 310mm (D)
Languages	English, French, Spanish, German, Italian & Dutch
Commodity Code	9027 5000
