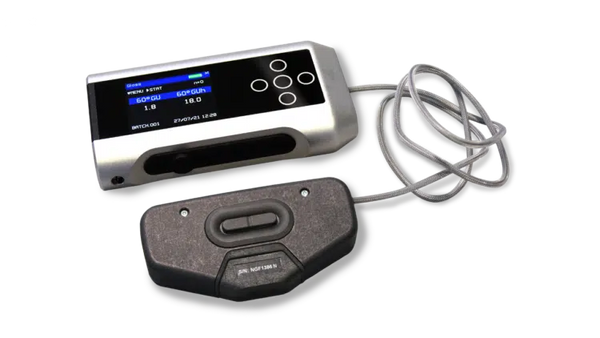

Novo-Gloss Flex 60 Glossmeter

Previous Product | Next Product

Product Description

£3,600.00 (ex VAT)

Usually ships in: 2-3 days

Delivery price: £8.99

Designed specifically to measure the gloss of surfaces that cannot be measured using traditional glossmeters, the novo-gloss flex 60 glossmeter combines the functionality and reporting of an advanced glossmeter with an ultra lightweight remote measuring head.

Measures small footprint areas at 60 degrees
Measure curved and hard to reach surfaces
On board statistics, Bluetooth and USB data transfer
Enhanced accuracy measurement of low gloss finishes

The Novo-Gloss Flex 60 has been designed specifically to measure low gloss surfaces. It features an additional measuring scale with a resolution 10 times greater than standard glossmeters.

This increased resolution gives a far superior level of control of surface finish.

The Novo-Gloss Flex 60 complies to ISO 2813 and measurements made with the instrument are compatible with traditional glossmeters complying to these standards.

Features

Fast measurement of all parameters. Full on-board statistics with graphical trend analysis and reporting.
Simultaneous measurement of all parameters, results are date and time stamped.
Displays full statistics for the number of readings in the current batch.
Graphical reporting for quick trend analysis.
Pass / fail parameters can be defined for instant identification of non-conformances.
Instantly transmit measured readings directly to programs such as MS Excel on your PC / tablet to greatly simplify the reporting process.
Software-free data transfer.
UKAS certification included

Instrument Calibration

The Novo-Gloss Flex 60 is supplied with 2 calibration standards for low and high gloss which gives increased accuracy and resolution for low gloss surfaces. The calibration standards are magnetically enclosed which offers superior protection from contamination. The standards are magnetically attached to the instrument measuring head to ensure repeatible calibration.

Measurement Head

The instrument is supplied with interchangeable measurement adaptors.

Standard adaptor
Steel surface adaptor (magnetic) for increased repeatibility for ferrous materials.

Both adaptors can be replaced if they are damaged.

The measuring head is ultra lightweight with integrated measurement buttons for single handed operation.

Instrument Specification
	Operation	Full colour easy to read screen Adjustable brightness 6 button touch sensitive interface
	Construction	Integrated calibration holders for error free calibration
	Measurement	Fast measurement Results batching with user definable names
	Graphical Analysis	On board trend analysis
	Statistical Analysis	Max, min, mean, S.D.
	Power	Rechargeable lithium ion - 14,000 readings per charge
	Memory	8MB = 2950 readings
Measurement Area	60°	6mm x 12mm
	Operating Temperature	15 - 40° C (60 - 104° F)
	Humidity	Up to 85%, non condensing
Dimensions & Weights	Instrument	80 (H) x 150 (W) x 35mm (D), 392g
	Measurement head	60 (H) x 110 (W) x 28mm (D),109g
	Packed Weight	1.6kg
	Packed dimensions	110mm (H) x 280mm (W) x 220mm (D)
	Commodity code	9027 5000
		GU	GUh
	Measurement range	0-125 GU	0 -125 GUh (0-12.5 GU)
	Resolution	0.1 GU	0.1 GUh (0.01 GU)
	Repeatability	±0.2 GU	±0.5 GUh (0.05 GU)
	Reproducibility	±0.5 GU	±2.0 GUh (0.2 GU)
