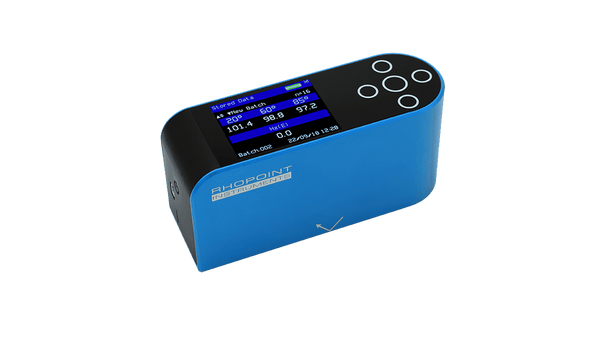

Novo-Gloss Trio 20/60/85 Glossmeter

Previous Product | Next Product

Product Description

£2,330.00 (ex VAT)

Usually ships in: 2-3 days

Delivery price: £8.99

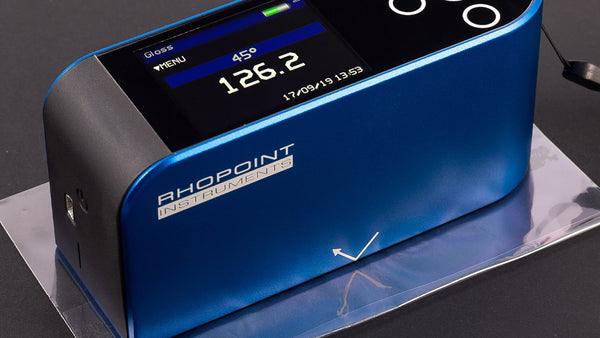

The Novo-Gloss Trio low cost glossmeter is ideal for gloss measurements of all surfaces and is suitable for matt to mirror gloss surfaces.

60° is referred to as the universal measurement angle and is the most commonly specified geometry in applications such as paints, coatings, plastics, automotive interiors and general manufacturing. It can be used as a basic gloss assessment for any surface

20° is the angle selected for high gloss applications such as paints and coatings, polished metals as it gives an improved resolution for high gloss finishes.

Features:

Simultaneous measurement of all parameters in GU or % reflectivity, date and time stamped.
Displays full statistics for the readings in the current batch.
Graphical reporting for quick trend analysis.
Pass / fail parameters can be defined for instant identification of non-conformances.
Automatic measurements at pre-defined intervals for easy checking of large surface areas.
User definable batch names and batch sizes for quicker and more efficient reporting.
USB connection to PC instanThe included software provides an easy means to measure, import and compare data and export the measurements into several other file formats, e.g. PDF, Excel® or CSV.tly recognises the device as a drive location which facilitates the quick transfer of .CSV files using Windows Explorer or similar.
Instantly transmit measured readings directly to programs such as MS Excel on your PC / tablet to greatly simplify the reporting process.
UKAS certification included

Instrument Information
Battery Type	Rechargeable lithium ion
Operation Time	17+ hours
Readings per Charge	20,000+
Memory	8MB, 2,000 readings
Operating Temperature	15°C - 40°C (60°F - 104°F)
Operating Humidty	Up to 85% (non condensing)
Commodity Code	9027 5000

Dimension & Weights
Dimensions	65mm (H) x 140mm (W) x 50mm (D)
Instrument Weight	390g
Packed Weight	1.6kg
Packed Dimensions	110mm (H) x 280mm (W) x 220mm (D)

Range	0 - 100 GU	100 - 2000 GU
Repeatability	0.2 GU	0.2%
Reproducibility	0.5 GU	0.5% *
Resolution	0.1 GU
Measurement Area	6mm x 6.4mm
Standards	ISO 2813 \| ASTM D523 \| ISO 7668 \| ASTM D2457 \| DIN 67530 \| JIS Z 8741

60° Gloss
Range	0 - 10 GU	10 - 100 GU	100 - 1000 GU
Repeatability	0.1 GU	0.2 GU	0.2%
Reproducibility	0.2 GU	0.5 GU	0.5% *
Resolution	0.1 GU
Measurement Area	6mm x 12mm
Standards	ISO 2813 \| ASTM D523 \| ISO 7668 \| ASTM D2457 \| DIN 67530 \| JIS Z 8741

85° Gloss
Range	0 - 100 GU	100 - 199 GU
Repeatability	0.2 GU	0.2%
Reproducibility	0.5 GU	0.5% *
Resolution	0.1 GU
Measurement Area	4.4mm x 44mm
Standards	ISO 2813 \| ASTM D523 \| ISO 7668 \| ASTM D2457 \| DIN 67530 \| JIS Z 8741
