Mitutoyo Digimatic Micrometers IP65 Ratchet Thimble 0-25mm, 25-50mm, 50-75mm, 75-100mm

Previous Product | Next Product

Product Description

£226.00 (ex VAT)

Please email us for shipping times

Delivery price: £5.99

Description:

This IP65 Micrometer offers outstanding accuracy without data output, is highly robust, and offers the following benefits:

Oil-resistant material used for all plastic parts
Extraordinary battery life of approx. 2.4 years
IP65: Excellent resistance against water and dust enables this micrometer to be used in machining situations that include splashing coolant fluid.

Micrometer Features:

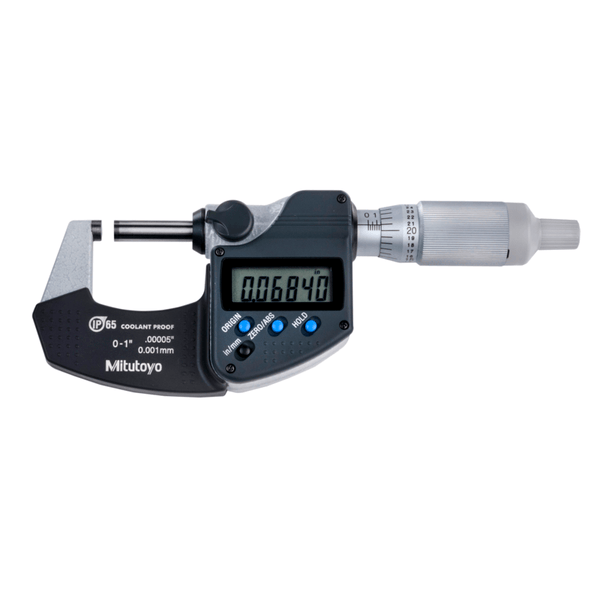

0-25mm (0-1"):

Range: 0-25m (0-1″)
Resolution: 0.001mm (0.00005″)
Accuracy: ±0.001mm (0.00005″)
Flatness: 0.0003mm (0.000012″)
Parallelism: 0.001mm (0.00004″)
IP65 Protected: Waterproof (coolant & dust resistant)
2mm travel per thimble rotation
Carbide measuring faces, micro lap finish
Ratchet thimble
Battery Life: 2.4 Years
No data output
Inch-mm conversion
Hold function
Auto Power OFF after 20 min non use
Measuring Spindle: with spindle lock, 6.35mm diameter, spindle pitch 0.5mm
MPN: 293-344-30
Brand: Mitutoyo

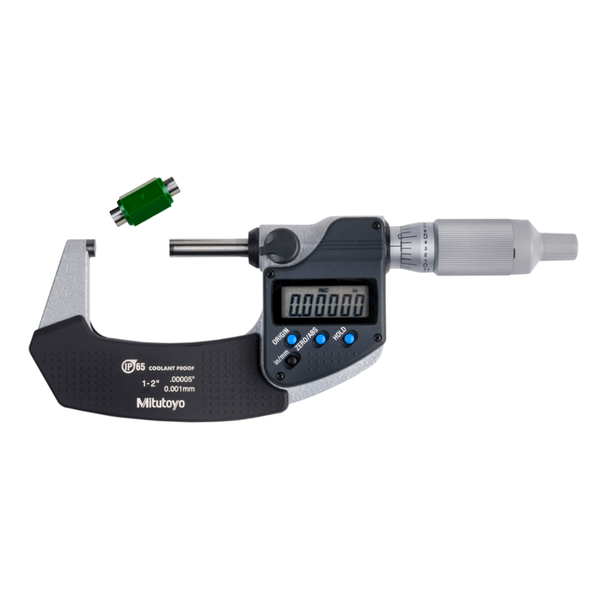

25-50mm (1-2"):

Range: 25mm-50mm (1-2″)
Resolution: 0.001mm (0.00005″)
Accuracy: ± 0.001mm (0.00005″)
Flatness: 0.00012mm (0.000012″)
Parallelism: 0.001mm (0.00004″)
IP65 Protected: Waterproof (coolant & dust resistant)
Carbide measuring faces, micro lap finish
Ratchet thimble
Battery Life: 2.4 Years
No data output
Inch-mm conversion
Hold function
Auto Power OFF after 20 min non use
Measuring Spindle: with spindle lock, 6.35mm diameter, spindle pitch 0.635mm
MPN: 293-345-30
Brand: Mitutoyo

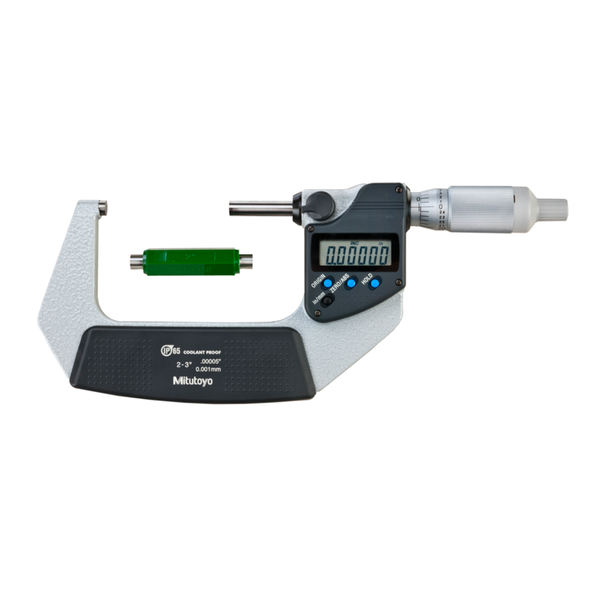

50-75mm (2-3"):

Range: 50-75mm (2-3″)
Resolution: 0.001mm (0.00005″)
Accuracy: ± 0.001mm (0.00005″)
Flatness: 0.0003mm (0.000012″)
Parallelism: 0.002mm (0.00008″)
IP65 Protected: Waterproof (coolant & dust resistant)
Carbide measuring faces, micro lap finish
Thimble and Sleeve scale
Ratchet thimble
Hold function
Measuring Spindle: 6.35mm diameter, spindle pitch 0.635mm
MPN: 293-346-30

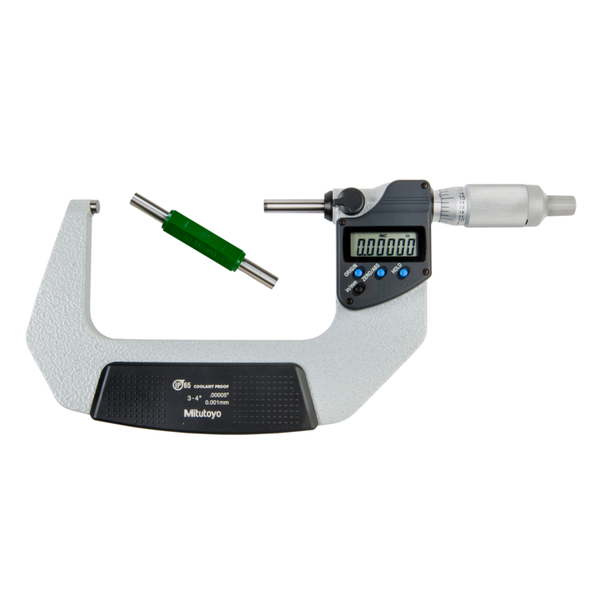

75-100mm (3-4"):

Range: 75-100mm (3-4″)
Resolution: 0.001mm (0.00005″)
Accuracy: ± 0.002mm (0.0001″)
Flatness: 0.0003mm (0.000012″)
Parallelism: 0.002mm (0.00008″)
IP65 Protected: Waterproof (coolant & dust resistant)
Carbide measuring faces, micro lap finish
Thimble and Sleeve scale
Ratchet thimble
Hold function
Measuring Spindle: 6.35mm diameter, spindle pitch 0.635mm
MPN: 293-347-30
Brand: Mitutoyo
