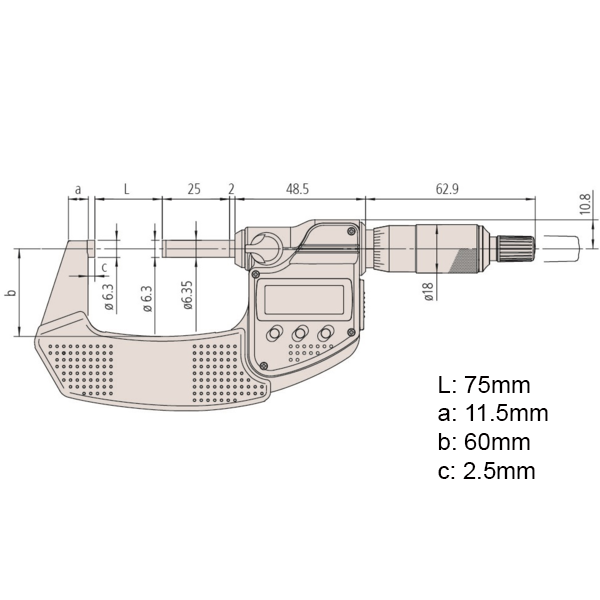

Mitutoyo Digimatic Micrometers IP65 Ratchet Stop 0-25mm, 25-50mm, 50-75mm, 75-100mm

Previous Product | Next Product

Product Description

£215.00 (ex VAT)

Please email us for shipping times

Delivery price: £5.99 Delivery price: £8.99

This IP65 Micrometer offers outstanding accuracy without data output, is highly robust and offers the following benefits:

Oil-resistant material used for all plastic parts
Extraordinary battery life of approx. 2.4 years
IP65: Excellent resistance against water and dust enables this micrometer to be used in machining situations that include splashing coolant fluid

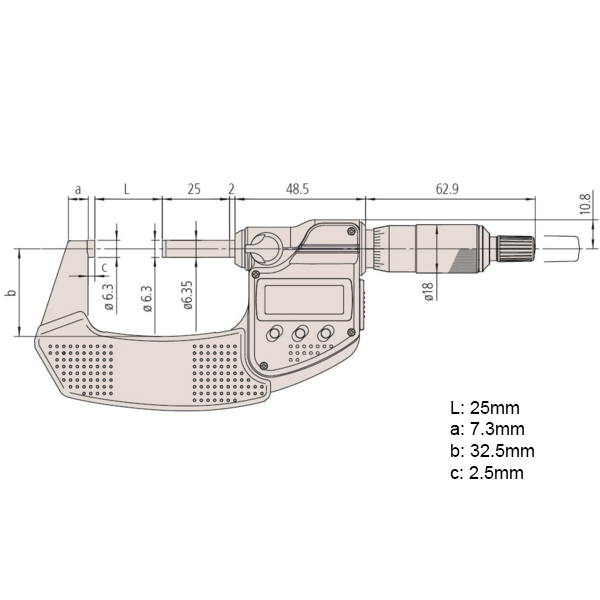

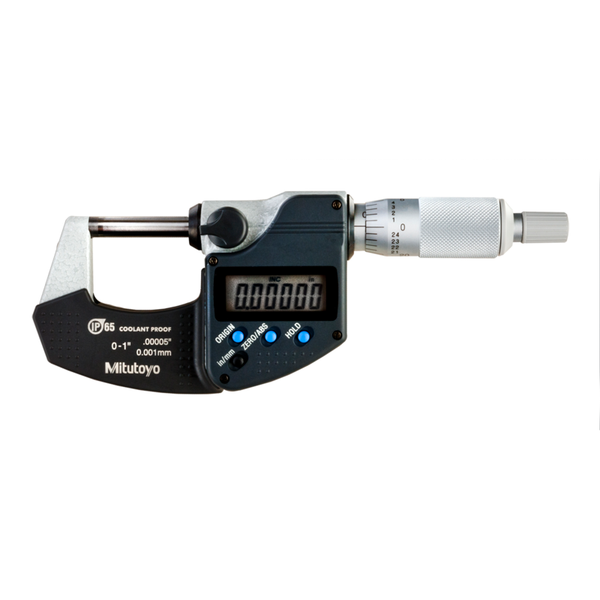

0-25mm Micrometer Features:

Range: 0-25mm (0-1″)
Resolution: 0.001mm (0.00005″)
Accuracy: ±0.001mm (0.00005″)
Flatness: 0.0003mm (0.000012″)
Parallelism: 0.001mm (0.00004″)
IP65 Protected: Waterproof (coolant & dust resistant)
Carbide measuring faces, micro lap finish

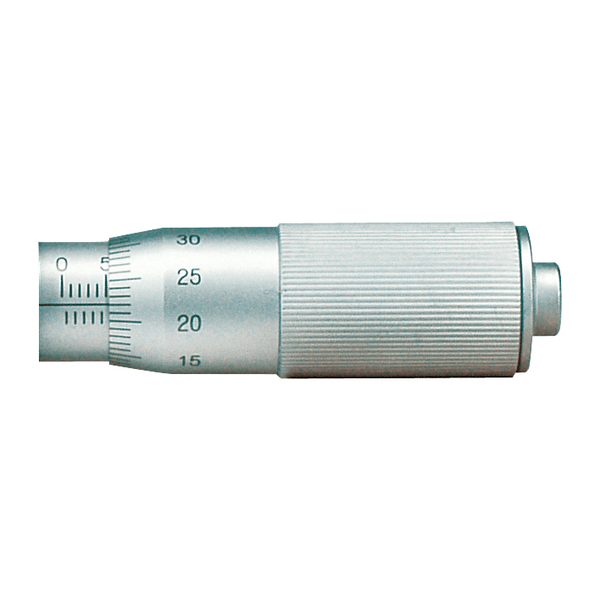

Thimble and Sleeve scale
Ratchet Stop
Hold function
Measuring Spindle: 6.35mm diameter, spindle pitch 0.635mm
MPN: 293-340-30
Brand: Mitutoyo

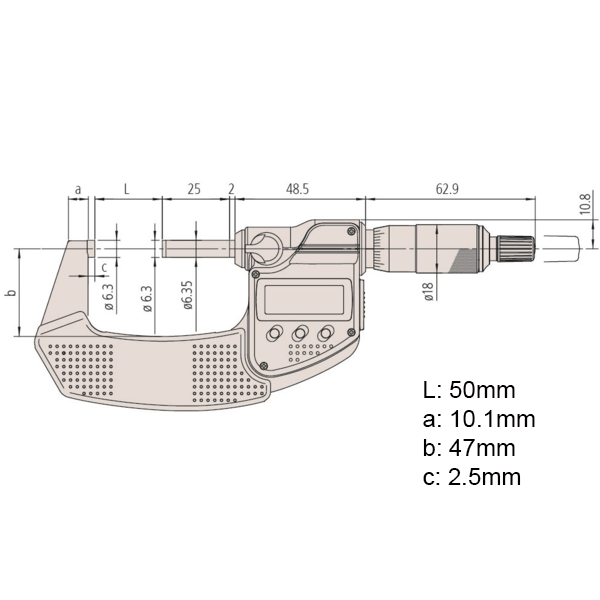

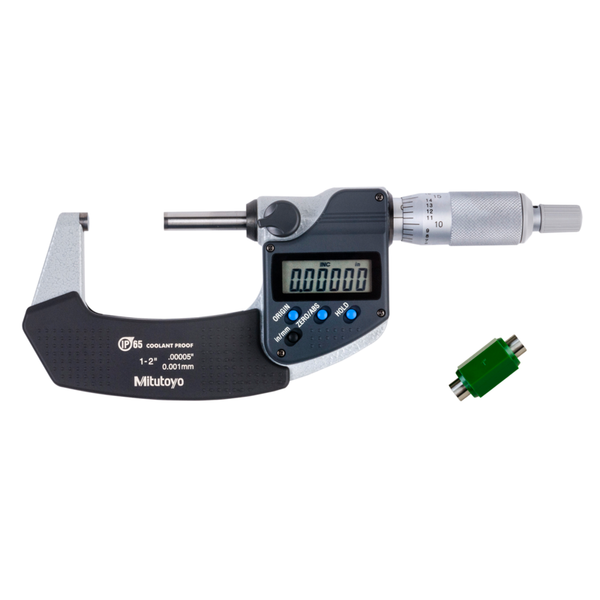

25-50mm Features:

Range: 25-50mm (1-2″)
Resolution: 0.001mm (0.00005″)
Accuracy: ±0.001mm (0.00005″)
Flatness: 0.0003mm (0.000012″)
Parallelism: 0.001mm (0.00004″)
IP65 Protected: Waterproof (coolant & dust resistant)
Carbide measuring faces, micro lap finish
Thimble and Sleeve scale
Ratchet Stop
Hold function
Measuring Spindle: 6.35mm diameter, spindle pitch 0.635mm
MPN: 293-341-30
Brand: Mitutoyo

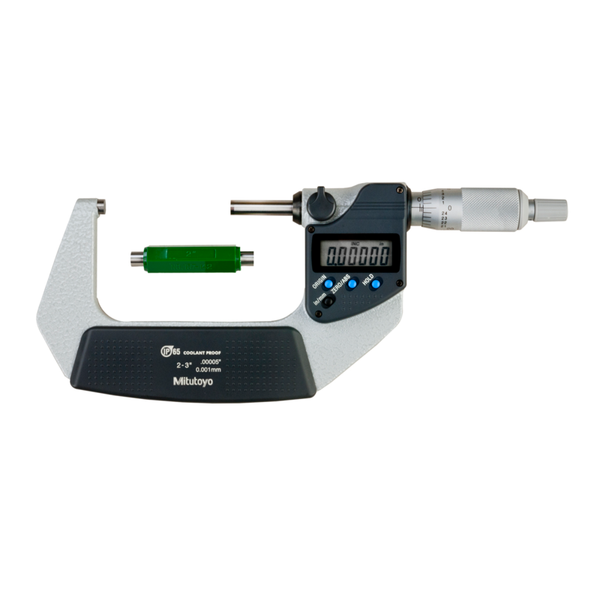

50-75mm Features:

Range: 50-75mm (2-3″)
Resolution: 0.001mm (0.00005″)
Accuracy: ±0.001mm (0.00005″)
Flatness: 0.0003mm (0.000012″)
Parallelism: 0.002mm (0.00008″)
IP65 Protected: Waterproof (coolant & dust resistant)
Carbide measuring faces, micro lap finish
Thimble and Sleeve scale
Ratchet Stop
Hold function
Measuring Spindle: 6.35mm diameter, spindle pitch 0.635mm
MPN: 293-342-30
Brand: Mitutoyo

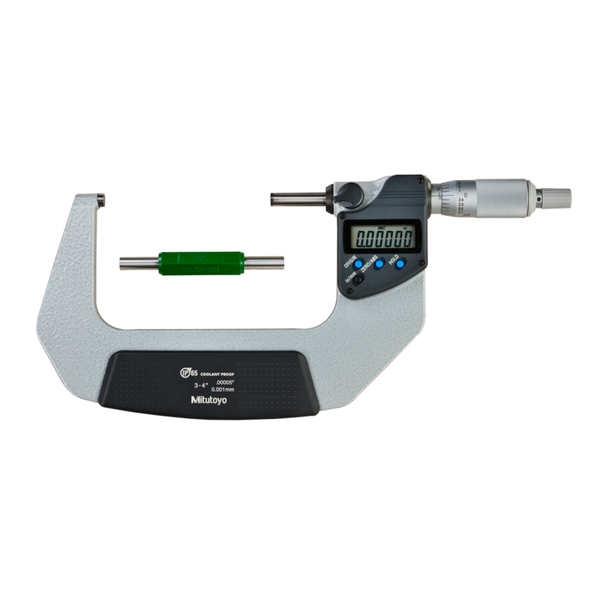

75-100mm Features:

Range: 75-100mm (3-4″)
Resolution: 0.001mm (0.00005″)
Accuracy: ±0.002mm (0.0001″)
Flatness: 0.0003mm (0.000012″)
Parallelism: 0.002mm (0.00008″)
IP65 Protected: Waterproof (coolant & dust resistant)
Carbide measuring faces, micro lap finish
Thimble and Sleeve scale
Ratchet Stop
Hold function
Measuring Spindle: 6.35mm diameter, spindle pitch 0.635mm
MPN: 293-343-30
Brand: Mitutoyo
