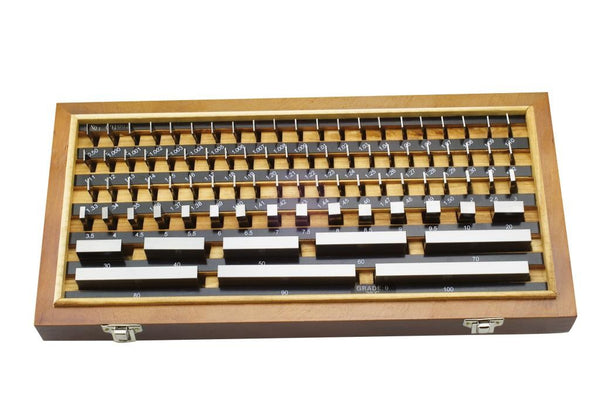

Moore & Wright Metric Steel Gauge Blocks 700 Series

Previous Product | Next Product

Product Description

£582.50 (ex VAT)

Usually ships in: 2-3 days

Delivery price: £8.99

Features

Made from high quality stress relieved alloy steel
Hardened to HV820 (HRC65)
Excellent rigidity
Size and serial number are engraved on each individual gauge block
Available in 2 grades - Grade 1 for Inspection, Grade 2 for Workshop
All sets have a MOORE & WRIGHT certificate

Code No.	Description	No. of Blocks
MW700-02	Grade 1	103
MW700-03	Grade 2	103
MW700-05	Grade 1	87
MW700-06	Grade 2	87
MW700-08	Grade 1	47
MW700-09	Grade 2	47
MW700-11	Grade 1	32
MW700-12	Grade 2	32

No. blocks	Nominal size	Qty	Step (mm)	No. blocks	Nominal size	Qty	Step (mm)	No. blocks	Nominal size	Qty	Step (mm)	No. blocks	Nominal size	Qty	Step (mm)
103	1.005	1		47	1.005	1		87	1.001-1.009	9	0.001	32	1.005	1
	1.01-1.49	49	0.01		1.01-1.09	9	0.01		1.01-1.49	49	0.01		1.01-1.09	9	0.01
	0.50-24.50	49	0.5		1.10-1.90	9	0.1		0.50-9.50	19	0.5		1.10-1.90	9	0.1
	25.0-100.0	4	25		1.0-24.0	24	1		10.0-100.0	10	10		1.0-9.0	9	1
					25.0-100.0	4	25						10.0-30.0	3	10
													60.0	1
