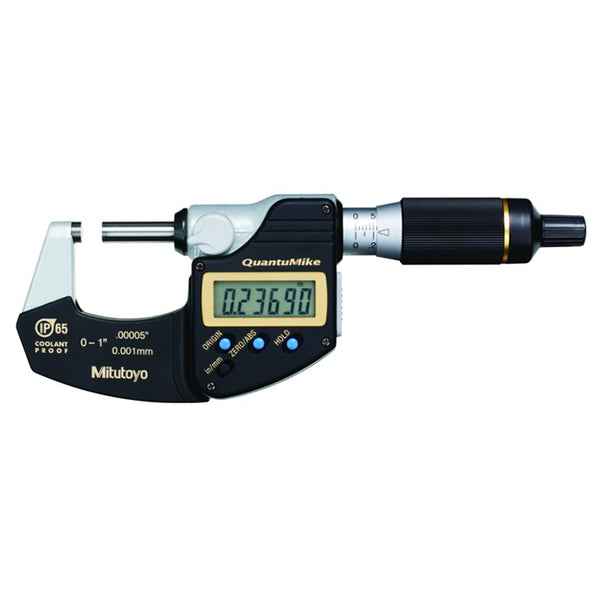

Mitutoyo 293-180-30 Digimatic QuantuMike Micrometer IP65 SPC Data Output 0-25mm (0-1″)

Previous Product | Next Product

Product Description

£325.00 (ex VAT)

Please email us for shipping times

Delivery price: £5.99

Micrometer Features:

Range: 0-25mm (0-1″)
Resolution: 0.001mm (0.00005″)
Accuracy: ±0.001mm (0.00005″)
Flatness: 0.0003mm (0.000012″)
Parallelism: 0.001mm (0.00004″)
IP65 Protected: Waterproof (coolant & dust resistant)
2mm travel per thimble rotation
Carbide measuring faces, micro lap finish
Ratchet thimble
Battery Life: 2.4 Years
SPC data output
Inch-mm conv
MPN: 293-180-30
Brand: Mitutoyo

Description:

This is an IP65 micrometer offering movement four times as fast as a standard micrometer. It presents you with the following benefits:

Faster measurement is achieved by using a coarser thread which feeds the spindle by 2 mm per thimble rotation.
Extraordinary battery life of 2,4 years
Outstanding accuracy

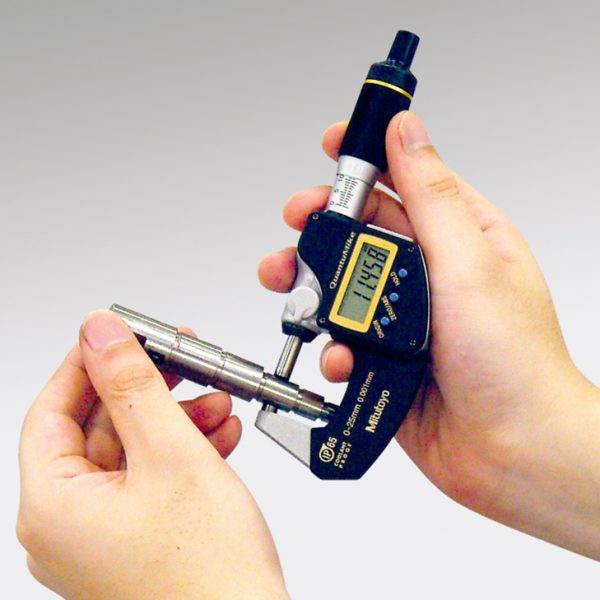

Ratched thimble mechanism ensures easy single-handed or stand operation.

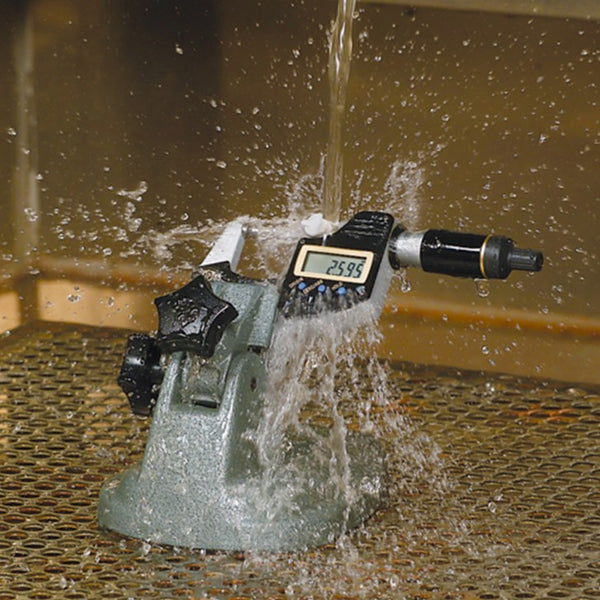

Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.
SPC data output – Models equipped with function has an out port for transferring measurement data to Statistic Process Control system (SPC).

Need help, advice or more information?

EMAIL US for a fast, friendly response from an engineer
