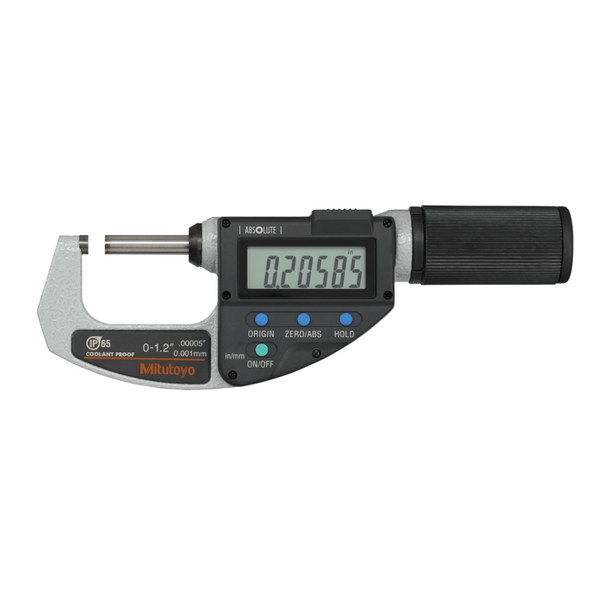

Mitutoyo 293-676-20 Digimatic ABSOLUTE Micrometer QuickMike 0-30mm (0-1.2″)

Micrometer Features:

• Range: 0-30m (0-1.2″)
• Resolution: 0.001mm (0.00005″)
• Accuracy: ±0.002mm (0.0001″)
• Flatness:  0.0003mm (0.000012″)
• Parallelism: 0.002mm (0.00008″)
• IP65 Protected: Waterproof (coolant & dust resistant)
• 10mm travel per thimble rotation
• Carbide measuring faces, micro lap finish

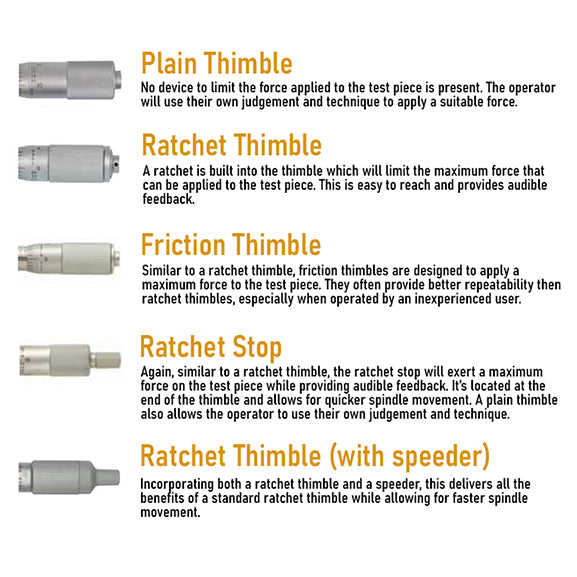

• Ratchet thimble
• Battery Life: 2.4 Years
• SPC Data Output
• Inch-mm conversion
• Hold function
• Auto Power OFF after 20 min non use
• Measuring Spindle: 6.35 mm diameter, non-rotating, 10 mm spindle feed
• MPN: 293-676-20
• Brand: Mitutoyo

Description:

This Quickmike, with a non-rotating spindle, delivers much faster movement than standard models.
The ABSOLUTE Digimatic Micrometer Quickmike offers the following benefits:

• With 10 mm feed per revolution, it delivers twenty times as fast as standard devices.
• Excellent resistance against water and dust (IP65) enables this micrometer to be used in machining situations that include splashing coolant fluid.
• ABSOLUTE linear scale means no restriction on adjustment speed.
• Larger measuring range – 30 mm compared with 25 mm – than standard micrometer.
