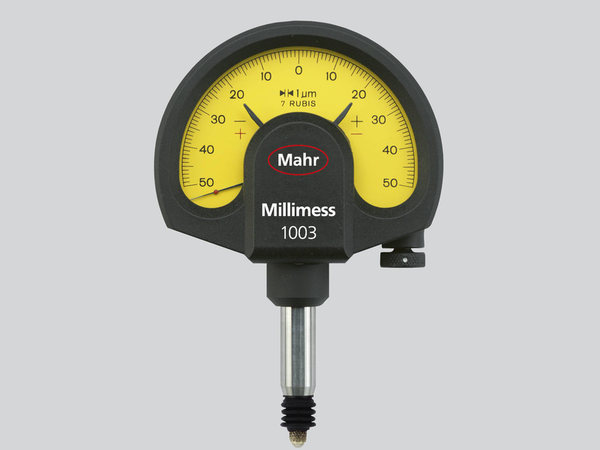

Mahr Millimess 1003 Dial Comparator - Range: ±0.05mm ; Graduation: 1 micron

Previous Product | Next Product

Product Description

£220.95 (ex VAT)

Usually ships in: 10-14 days

Delivery price: £5.99 Delivery price: £17.00 Delivery price: £17.00

Large, high contrast dial face
Adjustable tolerance markers
Lockable fine adjustment screw
Shockproof movement
Mounting shank and measuring spindle are both made of hardened stainless steel
Measuring spindle is mounted in a high precision ball guide for minimal hysteresis
Resistant to lateral forces (side play) acting on the measuring spindle
Maximum sensitivity and accuracy are ensured by the jeweled movement in conjunction with the precision gears and pinions
Box type protective housing
Constant measuring force
Measuring spindle can be retracted with either a screw in cable release or with a lifting knob
