| Display |
TFT color display, 110 mm (4.3"), 480 x 272 pixels |
| Product type |

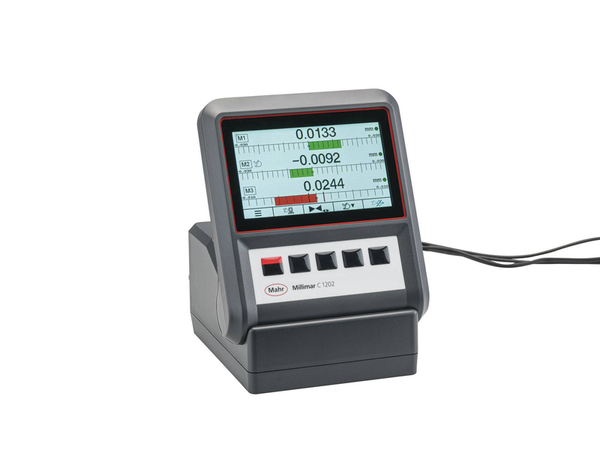

C 1202 |
| Range of digital display µm |
± 999 999.9 |
| Range of digital display inch |
± 39" |
| Range of analog display µm |
± 5000 , ± 2000 , ± 1000 , ± 300 , ± 100 , ± 30 , ± 10 , ± 3 |
| Range of analog display inches |
± .19" , ± .07" , ± .03'' , ± .01'' , ± .003'' , ± .001'' , ± .0004" , ± .0001'' |
| Resolution µm |
0,01 , 0,1 , 1 |
| Graduation mm |
500 , 200 , 100 , 20 , 10 , 2 , 1 , 0,2 |
| Graduation value inches |
.019" , .007" , .002" , .001" , .0002'' , .0001'' , .00002'' , .00001'' |
| Measuring combination |
+A, -A, +B, -B, A+B, +A-B, -A+B, -A-B |
| Features |
3 |
| Test steps |
1 |
| Dynamic functions |
Max, Min, TIR (Max-Min), (Max+Min)/2, Average |
| Statistical functions |
Length, Angle |
| Configuration |
Keyboard |
| Refresh rate |
30 fps |
| Data transmission rate |
30 Hz |
| Error limit, digital display |
0.3% (min. 0.2 μm);
0.3% (min. 0.04 μm)*
* (with N 1702 M-HR) |
| Error limit, analog display |
0.25% of the end scale value / 0.3% of the displayed value |
| Data interface |
USB |
| Hardware interfaces |
USB , Control input , RS-485 , Micro SD slot for SD / SDHC cards up to 32 GB |
| Control inputs |
Control input programmable
(functions and function sequences) |
| Energy supply |
Power source , 230 V/115 V; 50/60 Hz |
| IP protection category |
IP 42 |
| Working temperature MIN |
10 °C |
| Working temperature MAX |
35 °C |
| Operating temperature Min |
0 °C |
| Operating temperature Max |
40 °C |
