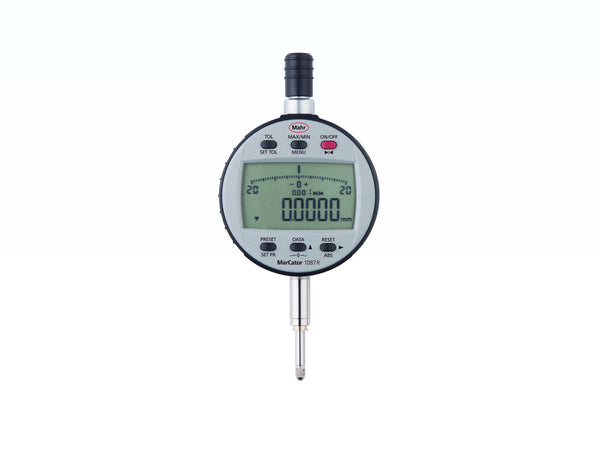

Mahr MarCator 1087 R Digital Indicator - 12.5mm/0.5"

Previous Product | Next Product

Product Description

£488.70 (ex VAT)

Usually ships in: 10-14 days

Delivery price: £5.99 Delivery price: £17.00

High contrast LCD display, thus very clear and safe to read
Operating and display unit (bezel) can be rotated through 280°
Immediate measurements due to the Reference System
Lifter protection cap on the measuring spindle
Mounting shank and measuring spindle are both made of hardened stainless steel

Measuring span in mm	12.5 mm
Product type	1087 R
Measuring span (inches)	.5"
Resolution	0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm
Graduation value mm	0,0005 , 0,001 , 0,002 , 0,005 , 0,01
Standard	Factory standard
Graduation value inches	.000002'' , .00005" , .0001'' , .0002'' , .0005"
IP protection category	IP 42
Battery type	CR 2450N (3V Lithium)
Range of analog display mm	± 0,01 , ± 0,02 , ± 0,04 , ± 0,1 , ± 0,2
Range of analog display inches	± .0004" , ± .001'' , ± .002" , ± .004" , ± .01''
Error limit (mm)	0.004 mm
Repeatability mm	0.001 mm
Measuring force (N)	0.65 - 0.9
Height of digits	8.5 mm
