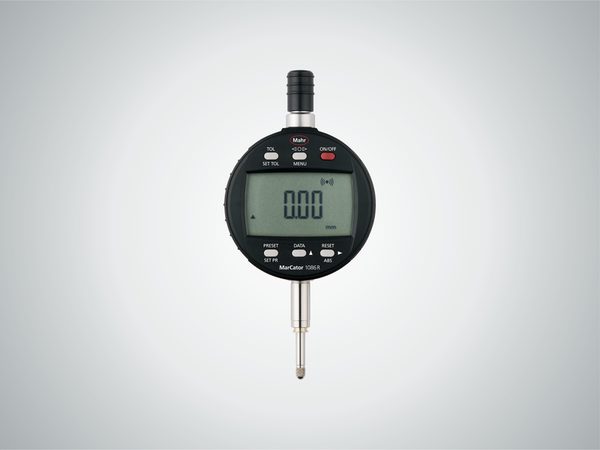

Mahr MarCator 1086 Ri Digital Indicator: Range 12.5mm/0.5"; Resolution 0.01mm OR Selectable

Previous Product | Next Product

Product Description

£449.10 (ex VAT)

Usually ships in: 10-14 days

Delivery price: £5.99 Delivery price: £17.00

Integrated wireless transmitter
High-contrast LCD display
Operating and display unit can be rotated 280&deg
Mounting shaft and measuring pin in hardened stainless steel
Ready to measure immediately thanks to reference system

Selectable Resolution:

Measuring span in mm	12.5 mm
Product type	1086 Ri
Measuring span (inches)	.5"
Resolution	0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm
Standard	Factory standard
IP protection category	IP 42
Battery type	CR 2450N (3V Lithium)
Error limit (mm)	0.004 mm
Repeatability mm	0.001 mm
Measuring force (N)	0.65 - 0.9
Height of digits	11 mm

Please select resolution preference.

0.01mm/0.0005":

Measuring span in mm	12.5 mm
Product type	1086 Ri
Measuring span (inches)	.5"
Resolution	0.01 mm
Standard	Factory standard
IP protection category	IP 42
Battery type	CR 2450N (3V Lithium)
Error limit (mm)	0.02 mm
Repeatability mm	0.01 mm
Measuring force (N)	0.65 - 0.9
Height of digits	11 mm

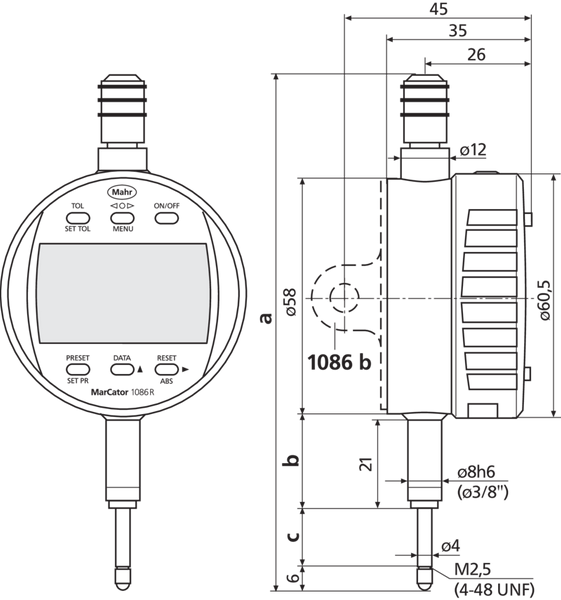

Dimensions
