Mahr MarCator 810 SV Dial Indicator - Range: 40mm ; Graduation: 0.01mm

Previous Product | Next Product

Product Description

£149.85 (ex VAT)

Usually ships in: 10-14 days

Delivery price: £5.99 Delivery price: £17.00 Delivery price: £17.00

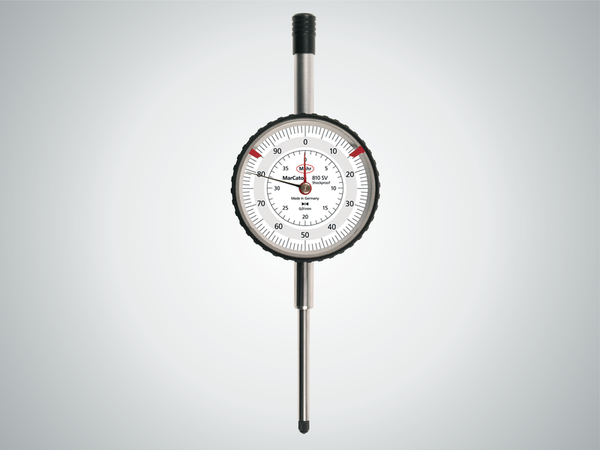

Dial indicator MarCator 810 SV
Factory standard
Measuring span in mm: 40mm
Graduation value mm: 0.01

High contrast dial face
Adjustable tolerance markers
Chrome plated housing
Lifter protection cap on the measuring spindle
Precision gears and pinions

Measuring span in mm	40 mm
Product type	810 SV
Graduation value mm	0.01
Standard	Factory standard
Figur on dial face	0 - 100
Range per rev. in mm	1 mm
Error limit measuring range µm	25 µm
Error limit 1 revolution µm	15 µm
Error limit 1/2 revolution µm	10 µm
Error limit 1/10 revolution µm	5 µm
Measuring value hysteresis fu (µm)	6 µm
Repeatability fw (µm)	3 µm
Overtravel mm	0.1 mm
Scale diameter	50 mm
Dial color	White
Dimensions	a 58 mm \| b 24.2 mm \| c 8.7 mm \| d 52 mm \| e 169 mm \| f 22 mm \| g 45 mm
