Mahr MarCator 1087 Ri IP42 Digimatic Digital Indicator | Range 25mm | Resolution 0.0005, 0.001, 0.002, 0.005, 0.01mm

Previous Product | Next Product

Product Description

£607.50 (ex VAT)

Usually ships in: 10-14 days

Delivery price: £5.99 Delivery price: £17.00

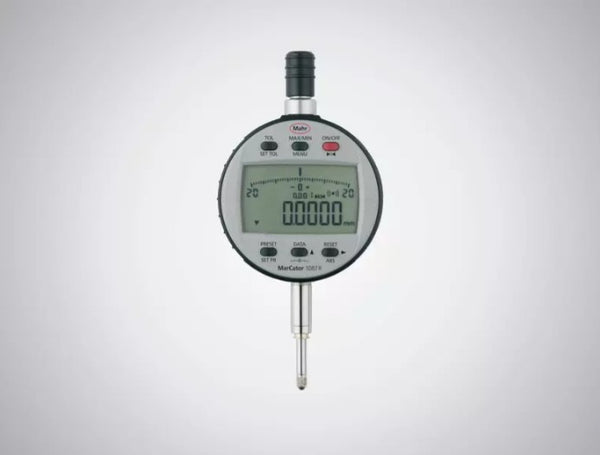

Digital indicator MarCator 1087 Ri
IP protection category: IP 42
Data interface: Integrated Wireless, USB, Digimatic, Opto RS-232C
Factory standard
Measuring span in mm: 25mm
Resolution: 0.0005, 0.001, 0.002, 0.005, 0.01mm
Resolution inches: .00002", .00005", .0001", .0002", .0005"
Package contains: battery, test certificate, instruction manual, Cardboard box
Integrated wireless transmitter
High-contrast LCD display
Operating and display unit can be rotated 280&deg
Lift-off cap on end of measuring pin
Mounting shaft and measuring pin in hardened stainless steel
Ready to measure immediately thanks to reference system

Product type	1087 Ri
Measuring span in mm	25 mm
Measuring span (inches)	1"
Resolution	0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm
Graduation value mm	0,0005 , 0,001 , 0,002 , 0,005 , 0,01
Graduation value inches	.000002'' , .00005" , .0001'' , .0002'' , .0005"
Error limit (mm)	0.004 mm
Repeatability mm	0.001 mm
Measuring force (N)	0.65 - 0.9
Height of digits	8.5 mm
Range of analog display mm	± 0,01 , ± 0,02 , ± 0,04 , ± 0,1 , ± 0,2
Range of analog display inches	± .0004" , ± .001'' , ± .002" , ± .004" , ± .01''
