Mahr MarCator 1086 R Digimatic IP42 Digital Indicator : 25mm Range, Selectable Resolution

Previous Product | Next Product

Product Description

£475.00 (ex VAT)

Usually ships in: 10-14 days

Delivery price: £5.99 Delivery price: £17.00

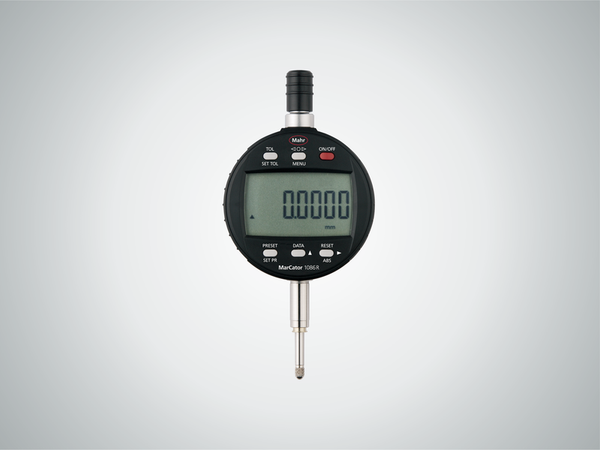

Digital indicator MarCator 1086 R
IP protection category: IP 42
Data interface: Digimatic, Opto RS-232C, USB
Factory standard
Measuring span in mm: 25mm
Resolution: 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches: .00002", .00005", .0001", .0002", .0005"
Package contains: instruction manual, battery

High contrast LCD display, thus very clear and safe to read
Operating and display unit (bezel) can be rotated through 280°
Lifter protection cap on the measuring spindle
Mounting shank and measuring spindle are both made of hardened stainless steel
Immediate measurements due to the Reference System

Measuring span in mm	25 mm
Product type	1086 R
Measuring span (inches)	1"
Resolution	0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm
Standard	Factory standard
IP protection category	IP 42
Battery type	CR 2450N (3V Lithium)
Error limit (mm)	0.004 mm
Repeatability mm	0.001 mm
Measuring force (N)	0.65 - 1.15
Height of digits	11 mm
Dimensions	a 153.4 mm \| b 26.8 mm \| c 26.5 mm \|
