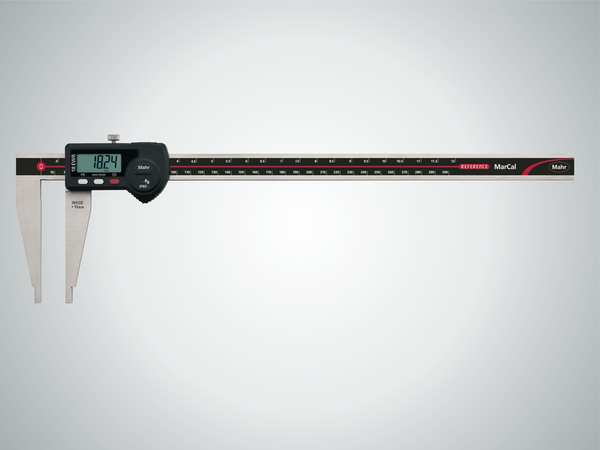

Mahr Marcal 18 EWR IP65 Digimatic Digital Caliper 0-300mm, 0-500mm

Previous Product | Next Product

Product Description

£446.40 (ex VAT)

Usually ships in: 10-14 days

Delivery price: £17.00 Delivery price: £8.99

Please select caliper size above.

Digital workshop caliper MarCal 18 EWR
Measuring range mm: 0 - 300 mm, 0-500mm
Resolution mm/inch: 0.01 mm / 0.0005 inch
Data interface: USB, Opto RS-232C, Digimatic
IP protection category: IP 65
Package contains: battery, instruction manual, case

High contrast digit display
Locking screw above
Rounded measuring blades for inside measurements
Slide and beam made of hardened stainless steel
Immediate measurements due to the Reference System
Raised guideway for the protection of the scale
Excellent resistance against dust, coolants and lubricants
Dirt wipers are integrated in the slide

0-300mm/0-12":

Measuring range mm	0 - 300
Measuring range inch	0 - 12"
Resolution mm/inch	0.01 / .0005"
Standard	Factory standard
Error limit (mm)	0.03 mm
Error limit inches	.001"
Battery type	CR 2032 (3V Lithium)
Dimensions	a 410 mm \| b 90 mm \| c 10 mm \| d 10 mm \| e 20 mm \|

0-500mm/0-20":

Measuring range mm	0 - 500
Measuring range inch	0 - 20"
Resolution mm/inch	0.01 / .0005"
Standard	Factory standard
Error limit (mm)	0.04 mm
Error limit inches	.0015"
Battery type	CR 2032 (3V Lithium)
Dimensions	a 650 mm \| b 150 mm \| c 20 mm \| d 20 mm \| e 25 mm \|
