Mahr Digimar 814 SR Wireless Height Gauge : 0-350 mm & 0-600mm

Previous Product | Next Product

Product Description

£683.00 (ex VAT)

Please email us for shipping times

Delivery price: £17.00 Delivery price: £8.99

Please select measuring range

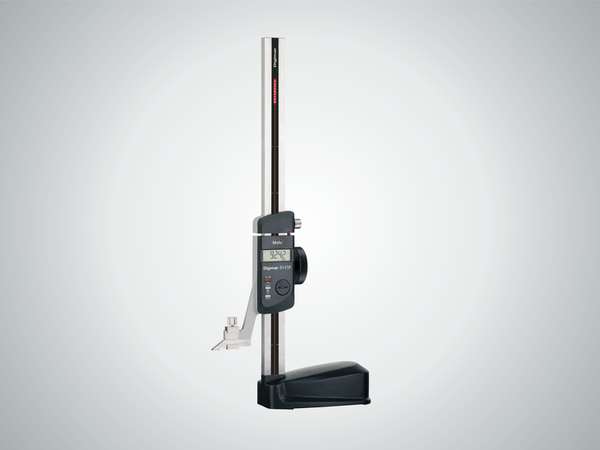

Height measuring and scribing instrument Digimar 814 SR
Measuring range mm: 0 - 350 mm or 0-600mm
0.01 mm / 0.0005 inch
Error limit µm: 40 µm
Data interface: Opto RS-232C, Digimatic, USB, wireless
Package contains: scriber, battery, carton, instruction manual

Up to 3 years’ battery life
Travel speed 1.5 m/s (60”/s)
MarConnect data output: optional
- USB
- OPTO RS232C
- Digimatic
High contrast 12 mm high LCD display
Sturdy, heavy-duty machine base
Hardened and lapped contact surface which produces both a smooth and even movement
Slide and rail are made of hardened stainless steel
Handwheel for positioning and measuring
Fine adjuster
Locking screw
Interchangeable measuring and scriber tips, carbide tipped

Measuring range mm	0 - 350 or 0 - 600
Measuring range inch	0 - 14" or 0 - 24"
Resolution	0.01 mm
Resolution	0.0005 inch
Error limit inches	.0016"
Error limit µm	40 µm
Error limit inches	0.0016 inch
Product weight	7 kg
Standard	Factory standard
Data interface	Opto RS-232C , Digimatic , USB , wireless

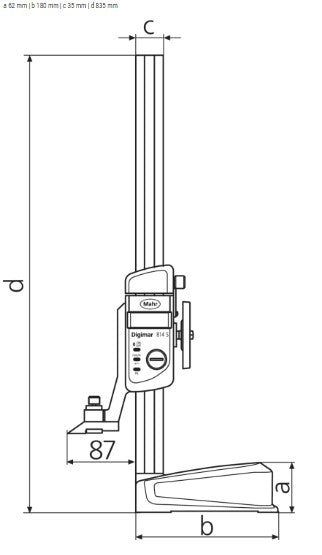

Dimensions	a 62 mm \| b 180 mm \| c 35 mm \| d 580 mm (0-300mm) a 62 mm \| b 180 mm \| c 35 mm \| d 835 mm (0-600mm)
