Moore & Wright Plunger Dial Indicators

Previous Product

Product Description

£56.50 (ex VAT)

Usually ships in: 2-3 days

Delivery price: £5.99

The Moore & Wright range of Dial Indicators includes a model for all applications. Building on decades of experience we offer standard indicators in most popular sizes. All units are supplied with tungsten carbide measuring contacts and satin chromed body.

Product	Range	Resolution	Accuracy	Dial diameter	Description

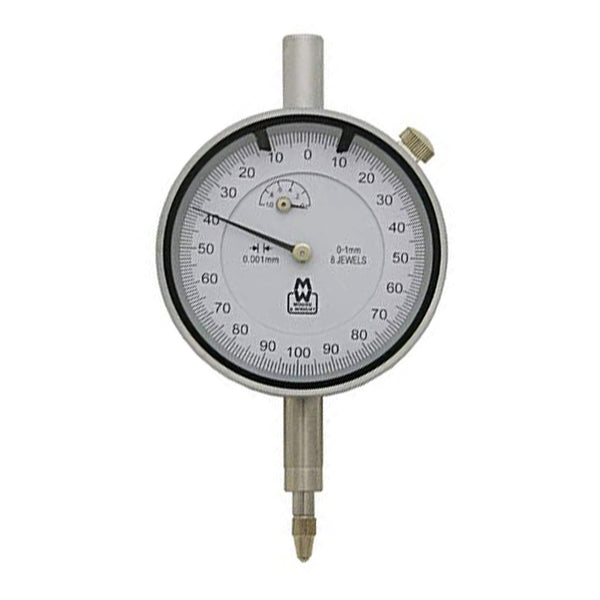

MW400-01	0-1.0mm	0.001mm	± 0.004mm	58mm	Flat back
MW400-02	0-1.0mm	0.001mm	± 0.004mm	58mm	Lug back
MW400-03	0-0.3mm	0.01mm	± 0.012mm	42mm	Lug back and flat back

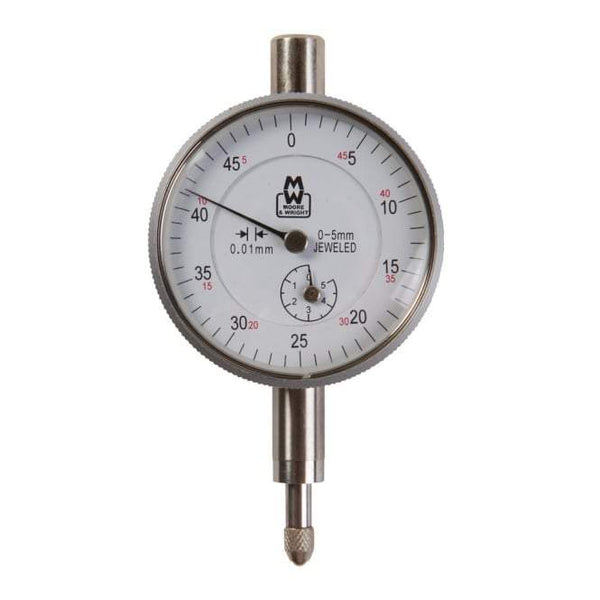

MW400-04	0-5.0mm	0.01mm	± 0.014mm	42mm	Lug back

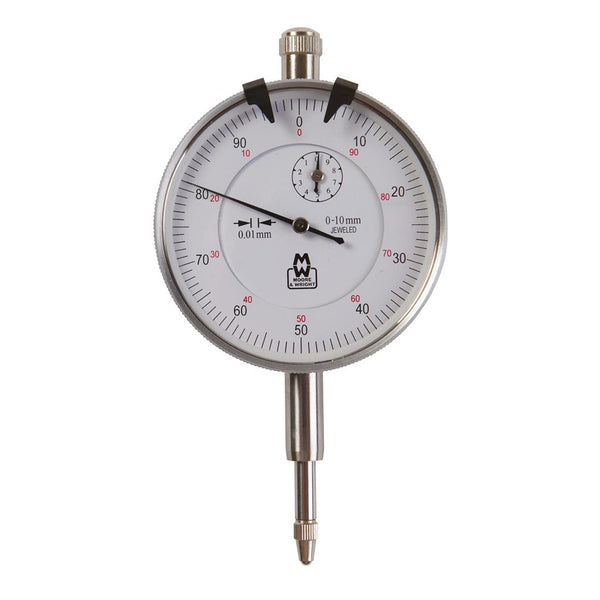

MW400-05	0-10mm	0.01mm	± 0.016mm	58mm	Flat back
MW400-06	0-10mm	0.01mm	± 0.016mm	58mm	Lug back

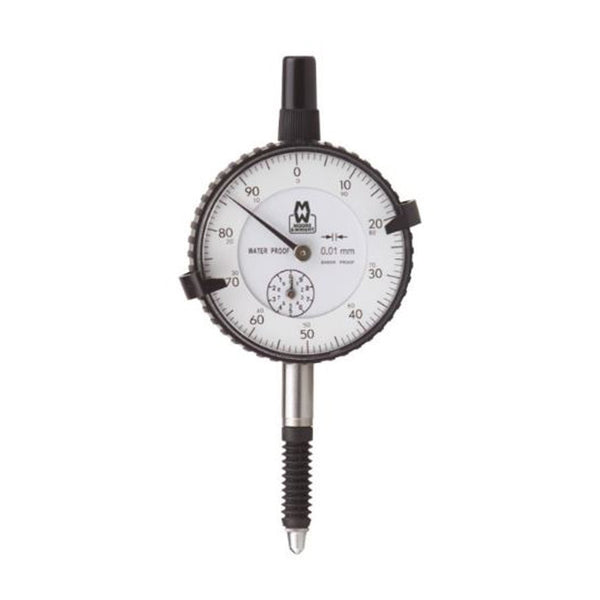

MW400-06B	0-10mm	0.01mm	± 0.02mm	54mm	Waterproof

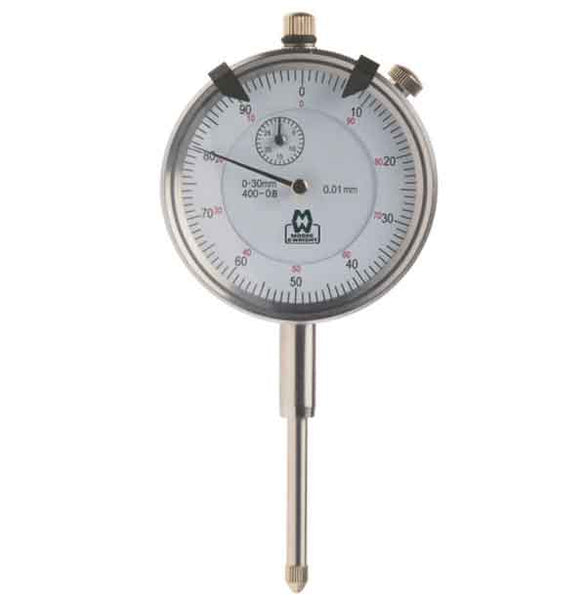

MW400-08	0-30mm	0.01mm	± 0.035mm	58mm	Lug back

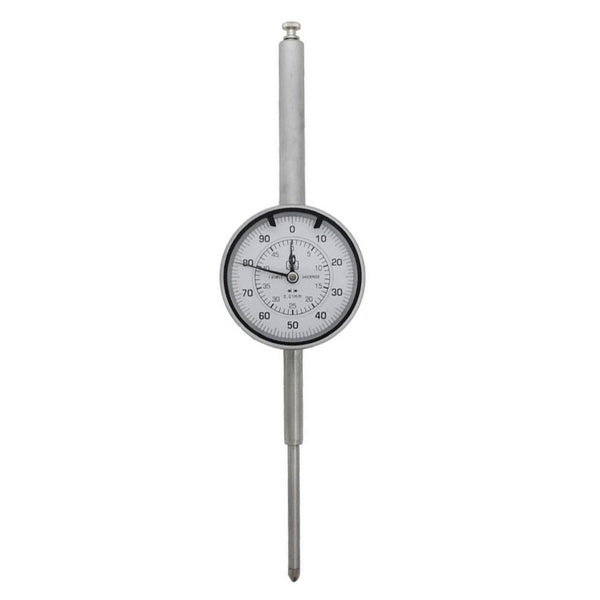

MW400-09	0-50mm	0.01mm	± 0.04mm	58mm	Lug back
MW401-05	0-25mm	0.01mm	0.004mm	60mm	Lug back
